Huawei gpon ont HG8310M GPON ONT series equipments are manufactured and developed by Huawei company, which is a leader in FTTH/
FTTO broadband access network field. They are properly manageable added with features such as high-bandwidth, high reliability,
low power consumption and satisfy the users requirement to access broadband, voice, data and video etc.

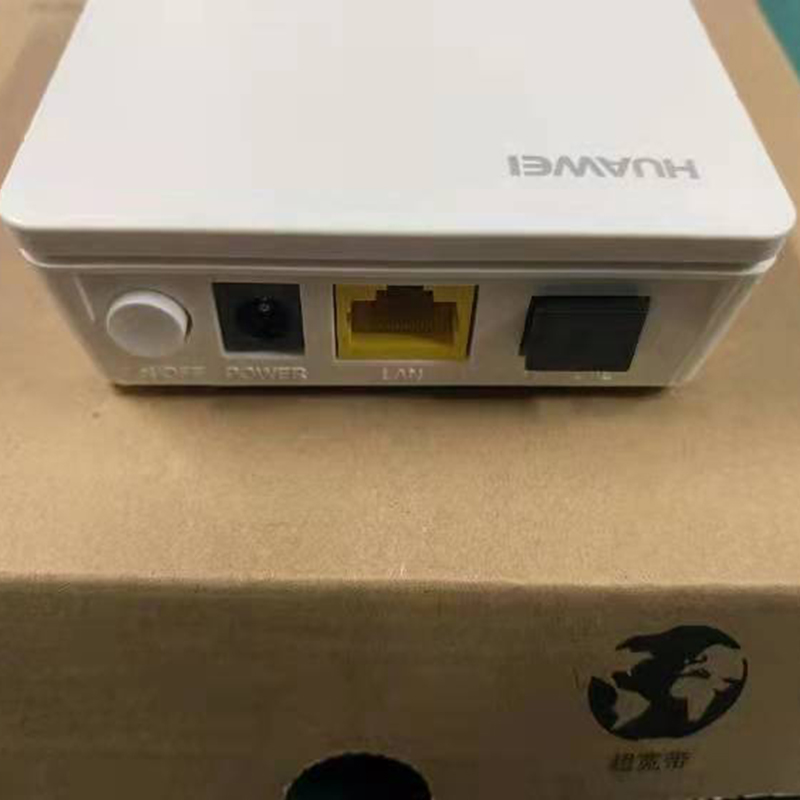

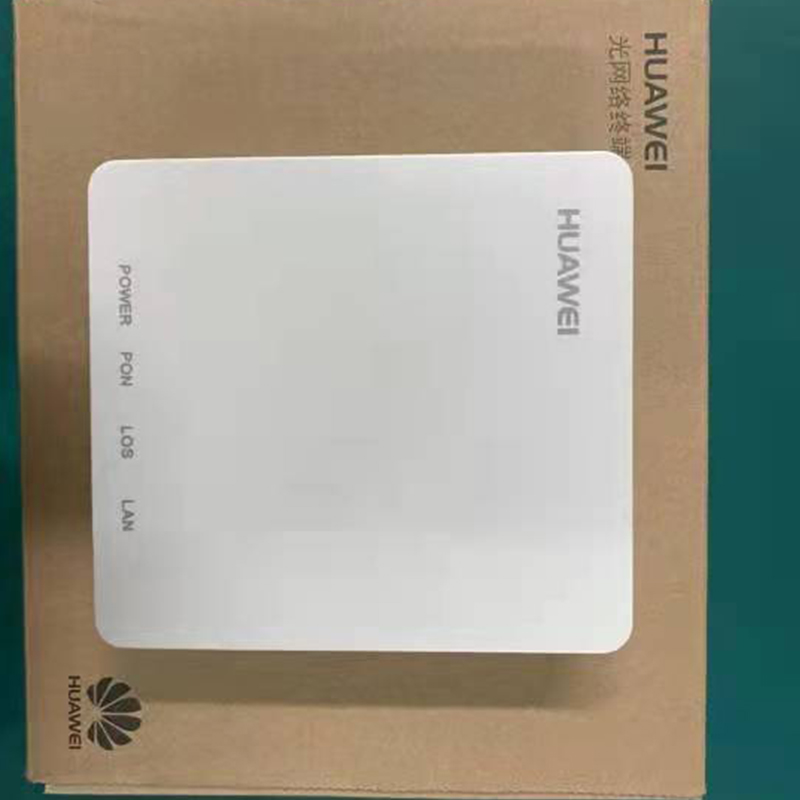

Huawei GPON ONU HG8310M with 1GE ports,an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using
the GPON technology, ultra-broadband access is provided for home and SOHO users.
The HG8310M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video
services. Therefore, the HG8310M provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH
deployment.

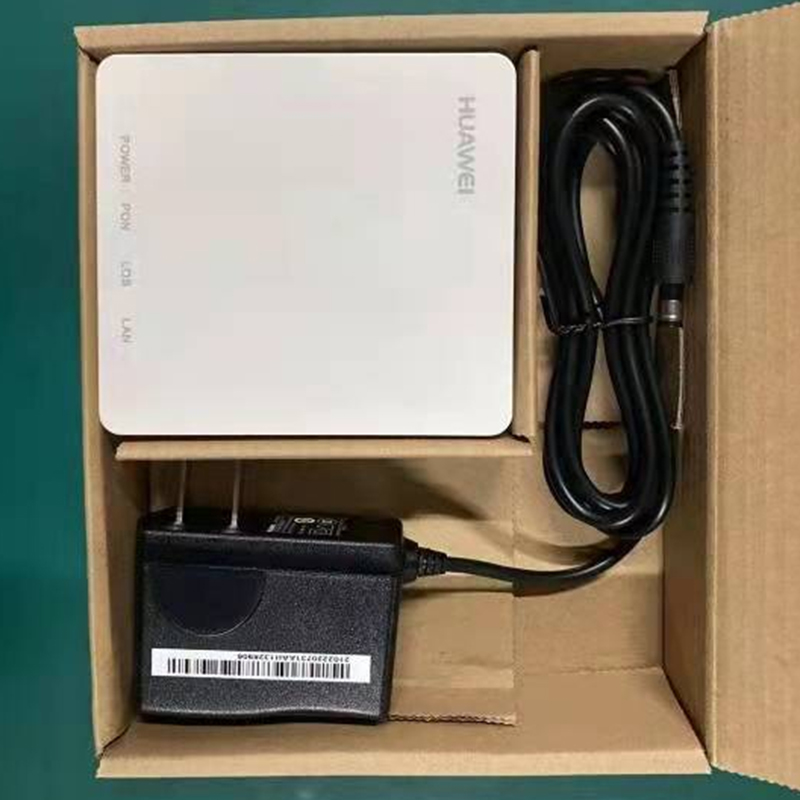

The HG8310M Provide English firmware and EU, US, UK, AU Power adapter for your choice.
| Technical items |
Descriptions |
| Fiber port |
1 GPON interface, 1GE,SC single-mode,Downstream rate 2.488Gbps, Upstream rate 1.244Gbps |
| Wavelength |
Tx 1310nm, Rx 1490nm |
| Fiber interface |
SC/UPC |
| RX sensitivity |
<-27dBm (1490nm) |
| LAN |
1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
| Throughput |
Downstream 950Mbps,Upstream 930Mbps |
| ONT Detection and Isolation of Active/Passive Hooligans |
YES |
| DC power |
Adapter input: 100-240 V AC, 50 - 60 Hz ; Adapter output: 11 – 14 V DC, 1 A |
| Button |
Reset, power |
| Power |
≤8W |
| Operation |
Working temperature: -0-+40℃ working humidity:5-95%(non-condensation) |
| Dimension |
180*140*30mm(length*width*height) |
| Net weight |
≤0.5Kg |
