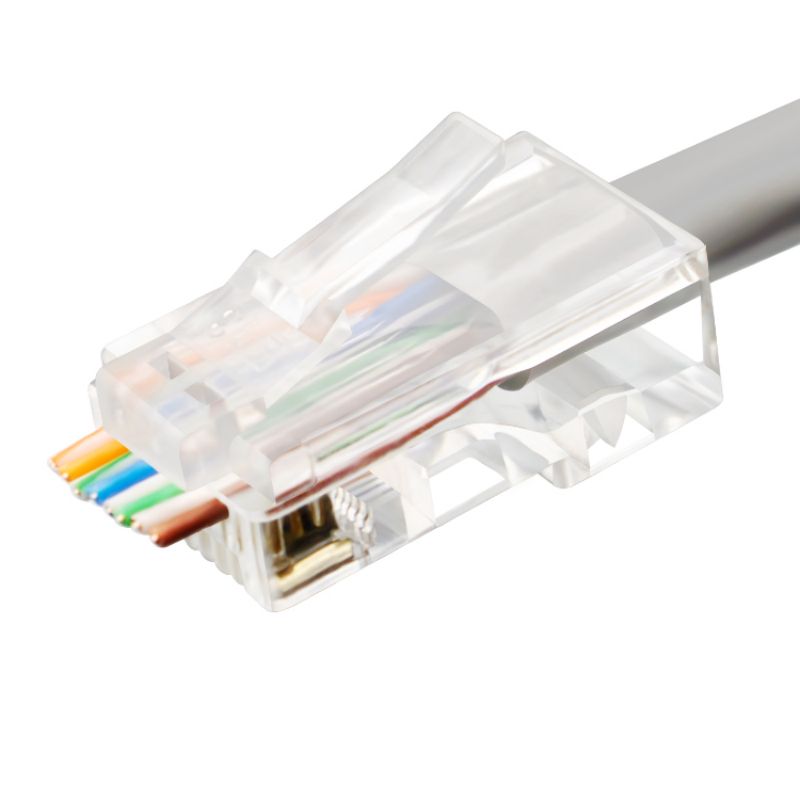

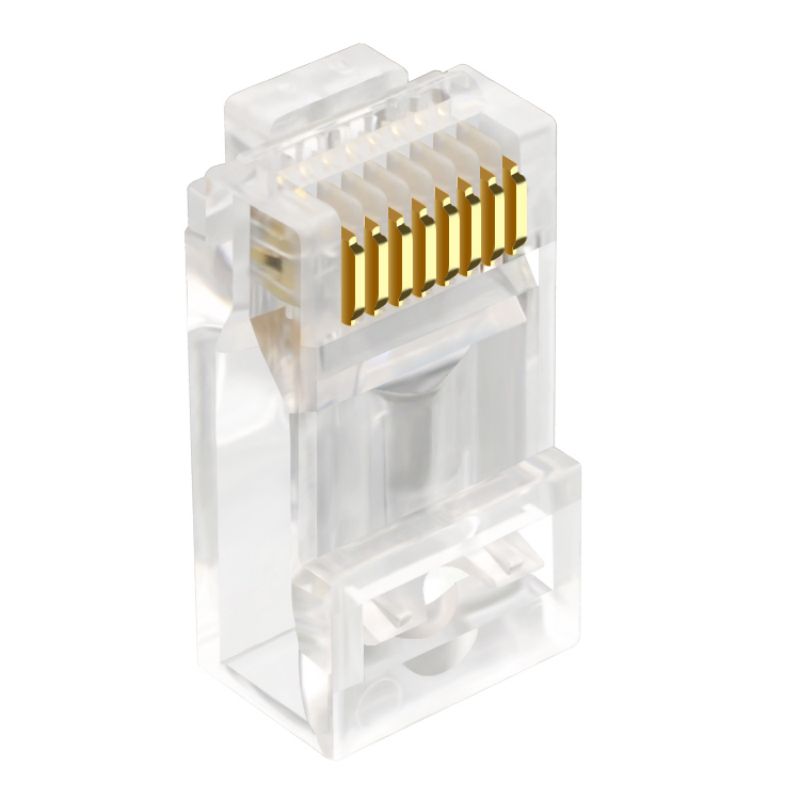

RJ45 Connector for Network Cables CAT6 CAT5
product

RJ45 Connector for Network Cables CAT6 CAT5

  • RJ45 Connector for Network Cables CAT6 CAT5
  • RJ45 Connector for Network Cables CAT6 CAT5
Contact Us
Parameter
PLUG SPECIFICATIONS
*UL 1863 No. 137614(DUXR2), complies with FCC part 68 subpart F standards.
Electrical Test 1.Dielectric Withstanding Voltage test 1000V/DC
2.Insulation Resistance: >500MΩ
3.Contact Resistance:<20MΩ
Gold Plate Inspection (Per MIL-G-45204C)         1.TYPE II (99% pure gold minimum)
2.Grade C+(KNOOP HARDNESS RANGE 130~250)
3.Class 1(50 microinches minimum thickness)
Mechanical 1.Cable-to-plug tensile strength-20LBs(89N) min.
2.Durability:2000 mating cycles.
Material & Finish 1.Housing Material: Polycarbonate(PC.) 94V-2(For UL 1863 DUXR2)
2.Contact blade: Phosphor Bronze
a.High strength copper alloy [JIS C5191R-H(PBR-2)].
b.100 microinches nickel under plated & Gold selected.
Operating Temperature:-40 ℃~+125℃
